D104A056-149 PCB端接面板插座連接器Fischer
發布時間:2024-04-11 09:20:25 瀏覽:2105
PCB端接面板插座連接器Fischer是一種用于PCB端接的連接器,具有3至27個接觸點,適用于低壓信號和電源傳輸。插座的典型端接方式為PCB焊接。該連接器的鎖定系統取決于插頭的設計,確保牢固的連接。它具有IP50防護等級,能夠在一般工業環境中有效防塵。
(EN:PCB End Panel Socket Connector Fischer is a connector for PCB end, with 3 to 27 contact points, suitable for low voltage signal and power transmission. The typical termination method of the socket is PCB welding. The locking system of the connector depends on the design of the plug, ensuring a strong connection. It has IP50 protection rating and can effectively prevent dust in general industrial environment.)

連接器類型為插座,外殼材料為黃銅,外殼顏色為黑色啞光。絕緣材料采用PEEK,能夠有效隔離電路,確保連接的穩定性和可靠性。該連接器采用面板前置安裝方式,并具有正常極性。
(EN:Connector type is socket, housing material is brass, housing color is black matte. The insulation material adopts PEEK, which can effectively isolate the circuit and ensure the stability and reliability of the connection. The connector is mounted in front of the panel and has normal polarity.)
這款Fischer PCB端接面板插座連接器適用于各種PCB連接需求,廣泛應用于工業控制、通信設備、醫療設備等領域。
(EN:The Fischer PCB end panel socket connector is suitable for various PCB connection needs and is widely used in industrial control, communication equipment, medical equipment and other fields.)
產品型號:
| 連接器Connector | 接觸Contacts | 典型端接Termination type | 鎖定系統Locking system | 信號/電源Signal / Power | 密封等級Sealing level |
| D104A056-149 | 11 | PCB | PTUg | Low Voltage | IP50 |
| 108991 | dependent | ||||
| D104A066-139 | 8 | PCB | Plug | Low Voltage | IP50 |
| 108865 | dependent | ||||
| D102A053-139 | 4 | PCB | Plug | Low Voltage | IP50 |
| 100419 | dependent | ||||
| D1031A019-139 | 19 | PCB | Plug | Low Voltage | IP50 |
| 102326 | dependent | ||||
| D102A059-139 | 9 | PCB | Plug | Low Voltage | IP50 |
| 122421 | dependent | ||||
| D104A056-139 | 11 | PCB | Plug | Low Voltage | IP50 |
| 108311 | dependent | ||||
| D104Z092-139 | 19 | PCB | Plug | Low Voltage | IP50 |
| 126226 | dependent | ||||
| D105A093-89 | 24 | PCB | Plug | Low Voltage | IP50 |
| 126728 | dependent | ||||
| D1031A019-149 | 19 | PCB | Plug | Low Voltage | IP50 |
| 129016 | dependent | ||||
| D105A038-139 | 18 | PCB | Plug | Low Voltage | IP50 |
| 129526 | dependent | ||||
| D104A086-139 | 16 | PCB | Plug | Low Voltage | IP50 |
| 108052 | dependent | ||||
| D105A110-139 | 16 | PCB | Plug | Low Voltage | IP50 |
| 104815 | dependent | ||||
| D104A092-139 | 19 | PCB | Plug | Low Voltage | IP50 |
| 124506 | dependent | ||||
| D102A059-149 | 9 | PCB | Plug | Low Voltage | IP50 |
| 129014 | dependent | ||||
| D103A058-139 | 8 | PCB | Plug | Low Voltage | IP50 |
| 114850 | dependent | ||||
| D102A052-139 | 3 | PCB | Plug | Low Voltage | IP50 |
| 106292 | dependent | ||||
| D103A056-139 | 6 | PCB | Plug | Low Voltage | IP50 |
| 125893 | dependent | ||||
| D103A054-139 | 5 | PCB | Plug | Low Voltage | IP50 |
| 135568 | dependent | ||||
| D105A102-139 | 27 | PCB | Plug | Low Voltage | IP50 |
| 124505 | dependen |
相關推薦:
更多Fischer連接器相關產品信息可咨詢立維創展。
推薦資訊

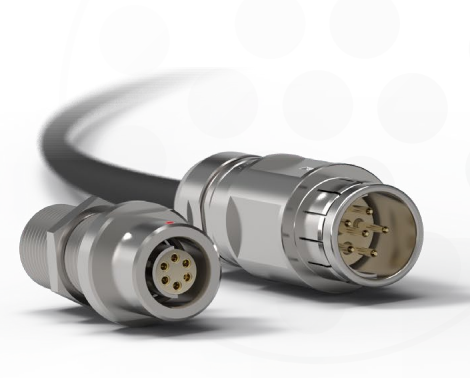

Fischer Core 系列不銹鋼圓形連接器由優質不銹鋼制成,專為高耐化學性、耐高溫性和耐輻射性而設計。這些連接器通常用于核研究實驗室、核廢料管理,也用于手術環境和食品加工行業,易于戴手套或遠程操作。借助行業標準的推拉式鎖定系統,通過簡單的動作確保安全配接和拔出,用戶還可以在手套箱中操作,或在危險或受污染的環境中使用遠程操作員或機器人。
